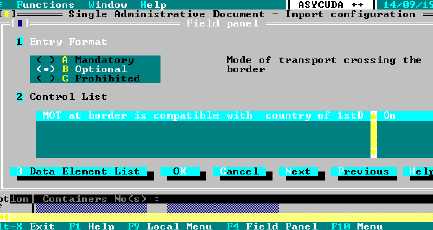

MODCHQCF - NATIONAL CONFIGURATION Ó UNCTAD - SITE (V1.15) 8.11                                Fig. 8.4 MODCHQCF: Functions: National Standards: Declaration Configuration For ‘Entry Format’ the field name is displayed on the right. The type of input format, ‘Mandatory’, ‘Optional’, or ‘Prohibited’, can be selected by clicking on the appropriate box or pressing  A, B or  C as required and then ‘OK’. A  ‘Control  List’  (if  applicable  to  the  field  concerned)  is  displayed  at  the  bottom  of  the  screen. These controls are contained in the ASYCUDA++ program and cannot be altered. They can only be switched on or off if they have been assigned to the relevant field. To switch the control, double click the mouse on the box or select the control and use the keyboard spacebar, the control will toggle between ‘On’, ‘Warning’ and ‘Off’ .  If the control is ‘On’  any  failure will prevent further processing.  If the control is set to  ‘Warning’ the system will warn the operator of the failure but allow further processing.  If the control is set to ‘Off’ the control is not done. The  fields  to  be  configured  can  be  selected  either  from  the  local  menu    ‘Quadrant’  option  or  by selecting the  ‘Data  Elements’   list  box  on  the  bottom  left  of  the  screen  and  then  selecting  the required field by double clicking on the list item or ‘Enter’. Note:  Fields   filled   with   X's   i.e.   "XXXX"   are   system   controlled   and   are   not configurable. When  the  configuration  is  complete  you  must  either  click  ‘OK’  or  press  ‘K’.    This  will  close  the window  and  reveal  the  Declaration  form  below.  To  complete  the  process  this  window  must  be closed  by  clicking  on  the  square  at  the  top  left  of  the  window.    A  box  will  open  confirming  the modifications made by asking:  “Save new configuration?” Click ‘OK’  to save. At present the new configuration is only held on the local client machine and must be transferred to the Server. The process to carry out this transfer is covered later in this Section. The new national configuration is now active on the client PC. This is useful for development    and    testing    purposes.    Declaration    configurations    and    Rules created under the    ‘Taxation  Standards’   menu  option  can  be  tested  without configuration transfer or server connection. In  addition  to  the  configuration  possibilities  described  above,  the  basic  Import and Export declaration configurations can be modified in MODCHQ.  This  allows separate  configurations  to  be  defined  for  every  Model  of  Declaration  or  new Models of Declaration or be created for special situations. See Section 10 of this Reference Document for details.
